RADWIN JET Point-to-MultiPoint network with Beamforming Antenna

Carrier-Class PtMP Beamforming for Enterprise & Residential

RADWIN JET PTMP Base Stations incorporate a smart beamforming antenna and advanced air interface. JET’s beamforming cancels radio interference and enables operation in heavily congested unlicensed bands and non-line-of-sight (NLOS) conditions. Delivering the highest actual capacity for extended range and second-to-none service reliability, RADWIN JET enables service providers to boost their ARPU while simultaneously reducing infrastructure costs.

JET’s innovative smart beamforming air-interface and TDD-network synchronization conjoin to boost frequency reuse to new levels. JET addresses the need for high network throughput while drastically reducing the amount of frequency spectrum needed for deployments.

JET Base Stations are ideal for the congested 5GHz unlicensed spectrum or the 3.x GHz licensed bands dealing with limited spectrum, either in suburban / rural areas or as a replacement for WiMAX.

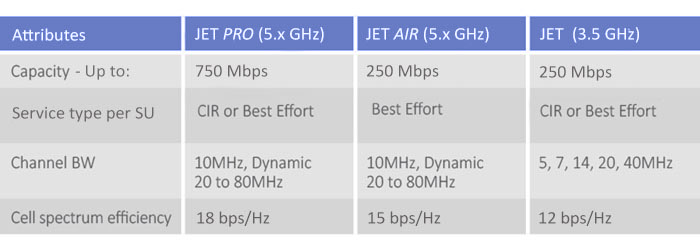

RADWIN JET Base Station models:

  • JET AIR  (5.x GHz) : Designed for residential networks and service providers with limited budgets.
  • JET PRO  (5.x GHz) / JET (3.5GHz): Built for mixed enterprise and residential networks, these base stations enable service providers to offer SLA for enterprise customers based on CIR (Committed Information Rate).

Service providers can easily mix-and-match between Base Station models to deliver the best possible service with the lowest TCO.


Why do you need SLA (Service-Level Agreement)?

Service providers can easily mix-and-match between Base Station models to deliver the best possible service with the lowest TCO.

JET Series Highlights

  • Base Station with smart Uplink and Downlink beamforming antenna
  • Up to 750 Mbps per sector, 3 Gbps per cell using 2 x 80MHz
  • Guaranteed SLA or best-effort per Subscriber Unit
  • Incomparable interference immunity, similar to PtP
  • Pay-as-you-grow Subscriber Units : 25 up to 250Mbps
  • Scalable network: TDD synchronization
  • High spectrum efficiency – 18bps/Hz per cell
  • Multi-band support: 4.9 – 5.9GHz or3.3-3.8GHz
  • Simple operation
  • Compatible with all RADWIN 5000 Subscriber Units install bases.
  • Long range – 40 km / 25 miles

Targeting a large market with growing demands for greater capacity, RADWIN 5000 HPMP provides highest base station capacity, greater spectrum efficiency for faster ROI and superb performance in harsh conditions in licensed and unlicensed sub-6 GHz bands.

 RADWIN 5000 HPMP delivers dedicated bandwidth per end-user, enabling operators to offer and meet agreed-upon service level agreements (SLAs). RADWIN 5000 HPMP radios also support an extensive range of frequency bands in the same unit, thus enabling flexible radio planning during network deployment and future evolvement.

To learn more about the RADWIN 5000 point to multipoint solution, contact us today.

Highlights

  • Up to 250 Mbps per base station sector
  • Upgrade subscriber unit capacity via a software key – from 5 to 25 Mbps
  • Fixed and Nomadic capabilities
  • Variety of subscriber units – 5, 10, 25, 50 Mbps
  • Small form factor MIMO subscriber units
  • OFDM, MIMO 2x2 / Diversity for nLOS deployments
  • Long range – 40 Km / 25 miles
  • Widest band offering: 2.4, 2.5-2.7, 3.3-3.8, 4.9-6.4GHz
  • Supporting Multiband 4.9 to 6 GHz in the same unit
